Lockheed SR-71 Blackbird is undoubtedly one of the most incredible planes ever made. This bird from the Cold War era was made to spy on Soviet military infrastructure and industry and could do that with unprecedented precision and speed. It even looks like a spaceship, even though it was designed back in 1950’s. But did you know it was leaking fuel all over the runway?

Lockheed SR-71 made its maiden flight in 1964 and entered service in 1966. It was one of the first STEALTH aircraft in the world, which allowed it to sneak through radas of potential enemies of the U.S. The design of the SR-71 was based on the experimental Lockheed A-12 reconnaissance aircraft. But, of course, the most impressive Blackbird’s feature was its incredible hunger for speed.

Lockheed SR-71 Blackbird still holds the record of the fastest air-breathing manned aircraft ever made. At the altitude of 24 km it could reach 3,540 km/h. If 24 km seemed too low, it could climb to 26 km. This allowed the Blackbird to outrace anti-aircraft missiles (ability that was tested in 1986 over Libya). But where there is speed, there is friction. Where there is friction, there is heat. And where is heat, there is metal expansion.

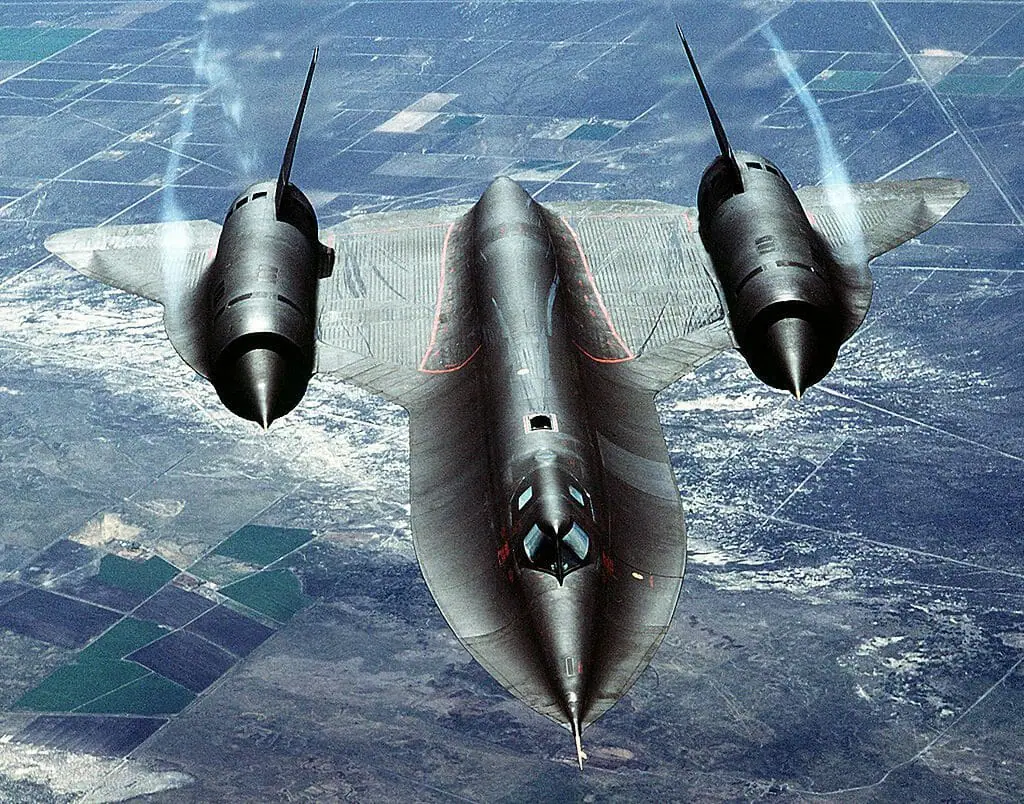

85 % of the SR-71 was made from titanium. (U.S. Air Force, Judson Brohmer, Wikimedia)

SR-71 had to be incredibly resistant to temperature, because it would really heat up when participating in its reconnaissance missions. 85 % of the aircraft was made from titanium (mostly sourced from the Soviet Union, by the way), the rest – from polymer composites. Titanium is quite resistant to heat, but additional measures had to be taken anyway. For example, the top skin of the wings was corrugated, not smooth – this allowed for greater expansion. The outer windscreen of the cockpit, which would reach the temperatures of 316 °C during a mission, was made of quartz and was fused ultrasonically to the titanium frame.

Titanium fouselage panels were only loosely fitted to the frame, to allow for heat expansion. This is what caused that infamous fuel leak – every single one of SR-71 ever made was leaking fuel on the runway. But why?

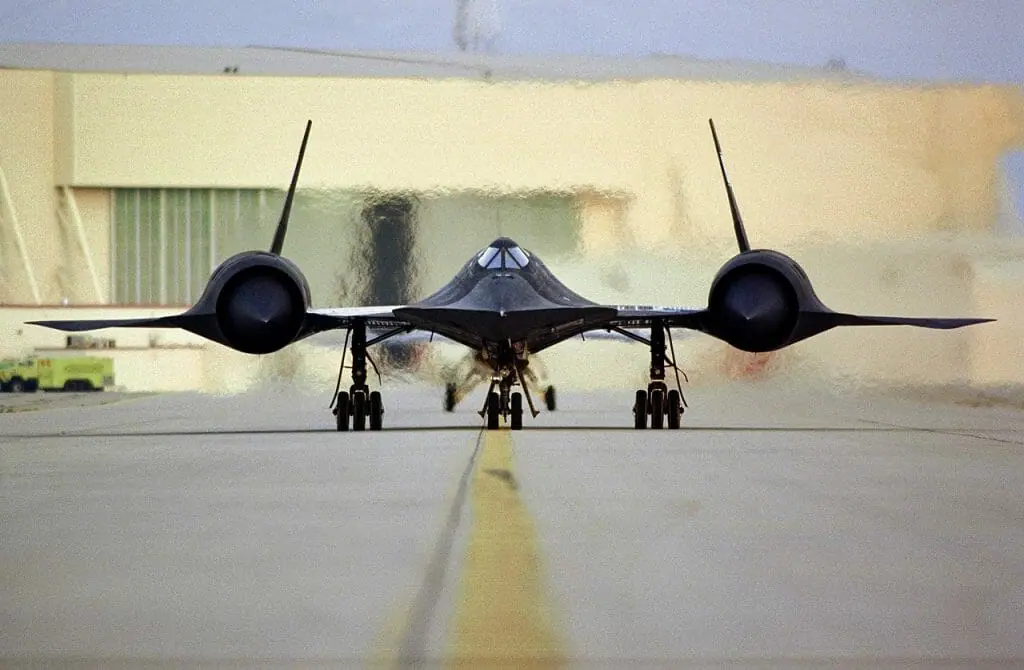

Although a fuel leak sounds like a terrible thing, SR-71 lost nothing compared to its total fuel capacity. (NASA, Wikimedia)

Well, metals expand when heated and shrink when cooling down. The fuel system of the SR-71 could not be sealed because there simply were no seals flexible and durable enough to deal with those kind of temperatures and shrinking-expansion cycles. It would stop leaking once the aircraft came up to temperature.

Also, fuel in SR-71 was used to cool the titanium surfaces in the chines – it was simply circulated behind them. Because titanium pieces were fitted loosely and only came into alignment when properly expanded during a high-speed flight, fuel was leaking through them. Not nice, right?

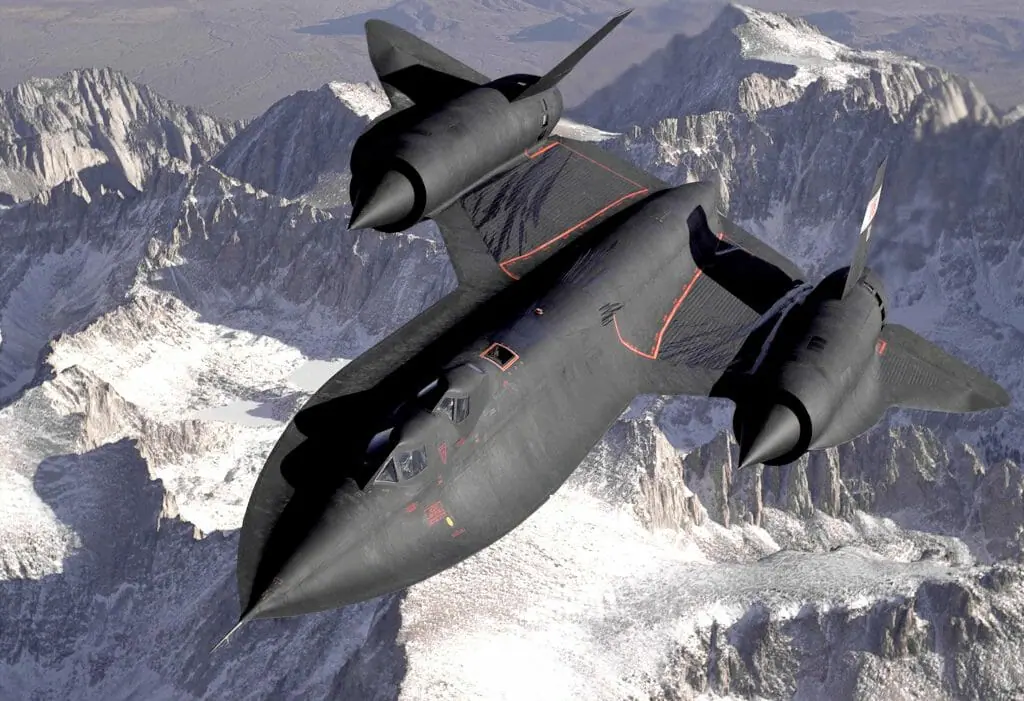

SR-71 could reach the speed higher than MACH 3.3 – it still is the fastest air-breathing airplane ever. (U.S. Air Force, Tech. Sgt. Michael Haggerty, Wikimedia)

Well, it wasn’t that much of a problem, actually. Lockheed SR-71 Blackbird would leave a trail of  the JP-7 aviation fuel on the runway, but the amount of fuel lost was insignificant compared to overall fuel capacity of the aircraft. SR-71 could take up 46,255 litres of fuel, but it was rarely filled up before take-off.

Taking-off with less fuel was actually prefered, because it was safer (if one of the engines fail, a lighter plane is better), expanded the lifespan of the tires and brakes. This meant that SR-71 was looking for a tanker plane immediately after taking off. Despite what some myths on the internet say, this strategy was not created because of the fuel leaks.

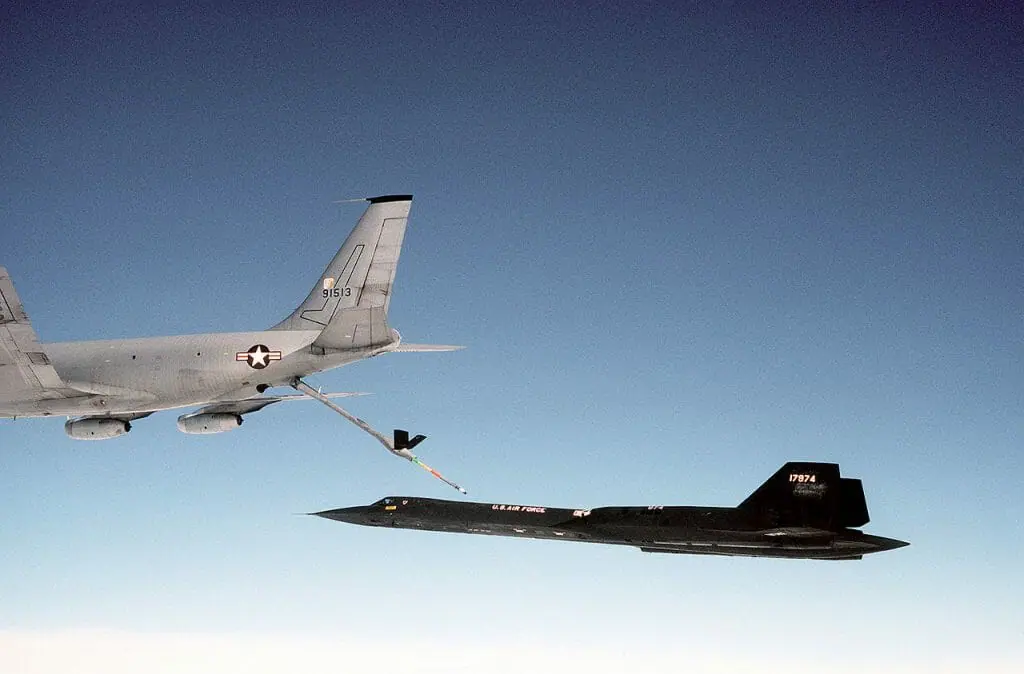

Immediately after taking off SR-71 searched for a tanker plane. (U.S. Air Force, Ken Hackman, Wikimedia)

Lockheed SR-71 Blackbird was finally retired in 1998 from USAF service and in 1999 from NASA fleet. 12 SR-71s were lost over the 32 year career, but none of them were lost to enemy action.
